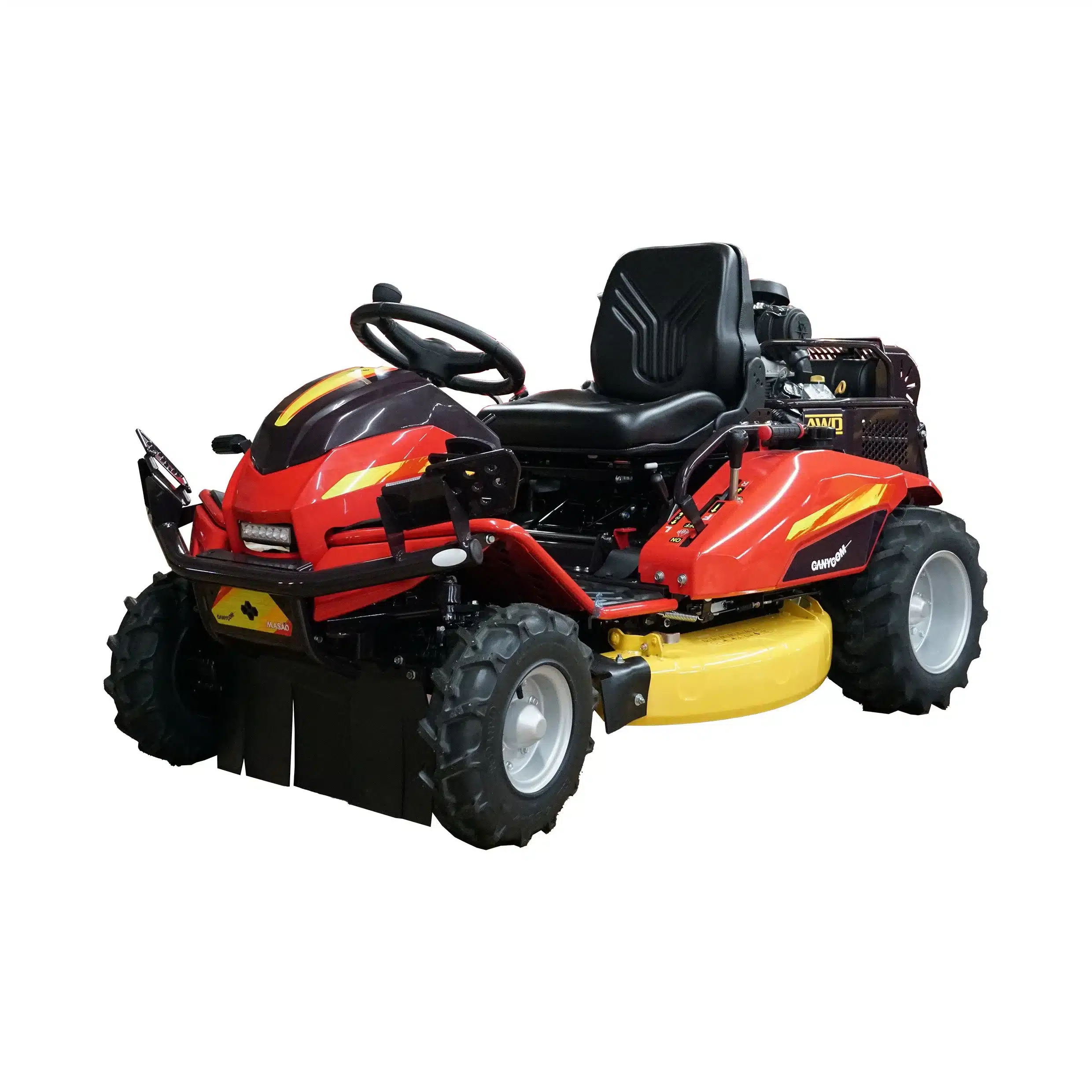

Razorback CMX2304 Mower at YardWorx Equipment

Discover the Razorback CMX2304, the ultimate all-terrain 4WD mower, available at Yardworx Equipment. Engineered for Australia’s toughest landscapes, this commercial-grade brush cutter is powered by a 23HP V-twin Vanguard engine, delivering unmatched performance for tackling mud, steep slopes, long grass, weeds, and saplings up to 36mm in diameter. With its robust hydrostatic transmission, selectable 2WD/4WD, and limited-slip diff lock, the CMX2304 conquers challenging terrains with ease.

Key features include a shaft-driven cutting deck with no belts for reliable power, tool-less blade changes, and an opening deck for hassle-free maintenance. The adjustable steering column and low seat position ensure operator comfort, while the high ground clearance and floating deck design enhance cut quality on uneven ground. Ideal for contractors, this mower offers exceptional durability and efficiency, making previously impossible mowing tasks achievable.

Razorback CMX2304 Mower Specifications

• Engine: Briggs & Stratton 3864, air-cooled 4-cycle V-twin gasoline, chain-driven overhead camshaft
• Rated Net Output: 17.2 kW (23 HP) @ 3600 RPM
• Weight (Fuel Tank Full): 375 kg
• Gradeability: 25 degrees
• Stability Angle: 25 degrees
• Max Speed: 14.2 km/h
• Fuel Tank Capacity: 18 liters
• Minimum Turning Radius: 1900 mm
• Cutting Width: 975 mm
• Cutting Height: 0–150 mm (stepless adjustment)
• Drive Train: Shaft-driven
• Transmission: Variable speed hydrostatic with charge pump, removable oil filter, and 7-liter tank for cooling
• Drive Modes: Selectable 2WD & 4WD from dashboard
• Differential: Limited-slip diff lock, selectable from dashboard
• Front Axle: Cast iron compact tractor front axle with planetary hubs
• Brakes: Drum brakes with park brake
• Gearbox: High & low ratio gearbox
• Cutter Deck: Shaft-driven, no deck belt
• Blade System: Tool-less blade changing with unique swinging & opening blade guard
• Comfort Features:
  • Adjustable steering column (telescopic reach, angle)
  • Three-position suspension seat (adjustable forward/back, rear seat angle)
  • Low center of gravity for stability on slopes
  • Easy and safe control layout
  • Hour meter and grab handles
• Optional Features: ROPS (Roll-Over Protective Structure)

Razorback CMX2304 Mower Frequently Asked Questions

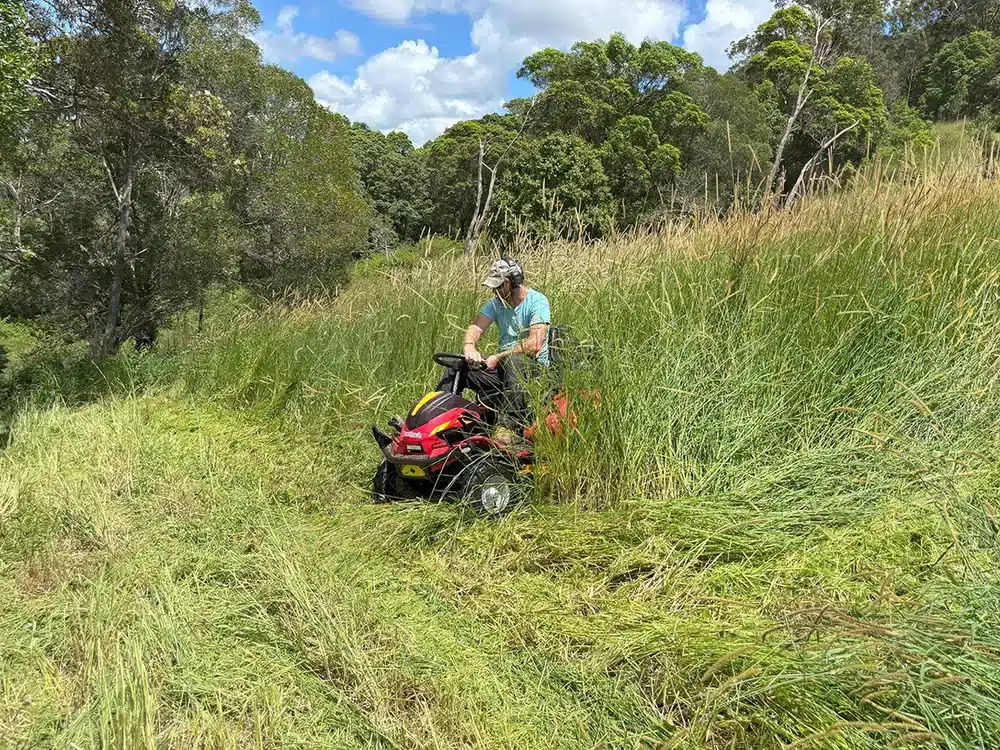

Q: What types of terrain can the Razorback CMX2304 Mower handle? A: The CMX2304 is designed for extreme terrains, including mud, steep slopes, long and short grass, weeds, brush, and saplings up to 36mm in diameter. It excels in harsh Australian conditions, including wet environments with clumping grasses and rushes.

Q: What makes the CMX2304 suitable for contractors? A: With its robust 23HP V-twin engine, shaft-driven cutting deck, and hydrostatic transmission with a 7-liter cooling tank, the CMX2304 is built for day-long work. Its ability to tackle challenging terrains and easy maintenance features make it a cost-effective choice for professional contractors.

Q: How easy is maintenance on the Razorback CMX2304 Mower? A: Maintenance is simplified with a tool-less blade changing system and an opening deck for easy access. The shaft-driven cutter deck eliminates belts, reducing maintenance needs and ensuring consistent power delivery.

Q: Can the CMX2304 be used on steep slopes? A: Yes, the CMX2304 has a low center of gravity, 25-degree gradeability, and stability angle, along with a specialist diff lock for excellent traction when climbing or descending slopes.

Q: What are the key comfort features of the CMX2304? A: The mower features an adjustable steering column (telescopic reach and angle), a three-position suspension seat (adjustable forward/back and rear angle), and an ergonomic control layout for operator comfort during long work hours.

Q: Is the Razorback CMX2304 Mower suitable for wet conditions? A: Absolutely. Its hydrostatic transmission with a charge pump and cooling system, combined with selectable 4WD and limited-slip diff lock, ensures reliable performance in wet environments, allowing you to work when others can’t.

Q: Does the CMX2304 have a belt-driven deck? A: No, it features a shaft-driven cutting deck, eliminating belts for greater reliability and no power loss from slipping pulleys, especially in tough conditions.

Q: Where can I see the CMX2304 in action? A: Contact YardWorx Equipment to arrange a demo and experience the CMX2304’s Queensland capabilities firsthand.

Q: Are there accessories available for the CMX2304? A: Yes, a range of accessories is available to enhance the CMX2304’s functionality. Visit https://www.therazorback.com.au/cmx2304 for more details.

Q: Can I switch between 2WD and 4WD? A: Yes, the CMX2304 allows you to switch between 2WD and 4WD from the dashboard, even while in operation, for maximum versatility.

Visit YardWorx Equipment to explore the Razorback CMX2304 Mower and experience its capability in handling harsh Australian conditions. Contact us for a demo or to learn more about this powerhouse mower!
